Racing Seat Textures: Defining Technical Weaves with Crosshatch and Diagonal Lines

Most automotive interior sketches fail because the materials look like flat plastic. A racing seat isn't just a shape; it is a complex assembly of high-friction technical fabrics and reinforced bolsters.

When you try to hand-draw a tight weave across a curved bucket seat, the rhythm usually breaks. You start strong on the headrest, but by the time you reach the side bolsters, the spacing drifts. The sketch loses its professional edge.

The trap of the inconsistent weave

Racing seats often use technical knits or carbon-style weaves to imply grip and durability. These patterns rely on perfect repetition. If your hand-drawn lines vary by even a millimeter, the material looks like a mistake rather than a design choice.

Manually hatching a large surface area like a seat back is also a massive time sink. It forces you to stop thinking about the car's interior volume and start thinking about individual pen strokes. This is where the flow of a sketch dies.

Laying down the Crosshatch and Diagonal patterns

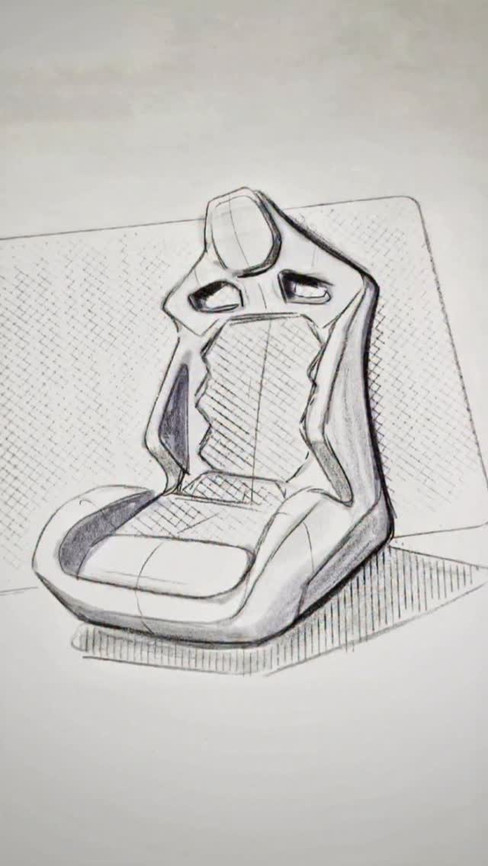

Using the Crosshatch and Diagonal Lines tiles allows you to apply a technical "knit" in seconds. You place the tile under the page and let the physical texture guide your marker or pencil.

The Crosshatch tile creates that tight, woven look found in high-performance fabrics. The Diagonal Lines tile works perfectly for secondary materials or reinforced panels. You get the visual density of a technical material without the manual labor.

Why consistency defines the material

A viewer identifies a material based on its frequency. If the pattern is consistent, the brain reads it as "fabric" or "carbon fiber." If the pattern is erratic, the brain reads it as "shading" or "dirt."

The goal isn't to draw every thread. The goal is to provide enough visual information so the viewer understands the tactile quality of the seat. Using a stencil ensures that the texture remains uniform across the entire form, which reinforces the 3D volume of the sketch.

Where to use this

• Technical backpacks and soft goods

• Mesh panels on office task chairs

• Automotive floor mats and carpeting

• Athletic footwear upper materials

• Speaker grille fabrics

• Anywhere a repeated pattern defines the material.

Try this in your next sketch

How do you currently handle the transition between a smooth leather bolster and a textured fabric seat insert?

What are SketchTiles

SketchTiles are physical texture stencils built for designers, by designers. Place a tile under your page, trace with any pencil or marker, and the pattern transfers onto your sketch. Each set includes four double-sided tiles, etched with eight precise patterns: Diagonal Lines, Crosshatch, Isometric Dot Grid, and Hexagonal Grid.

SketchTiles are available as The Essentials Set and the Essentials Complete Set. Shop on Amazon.
